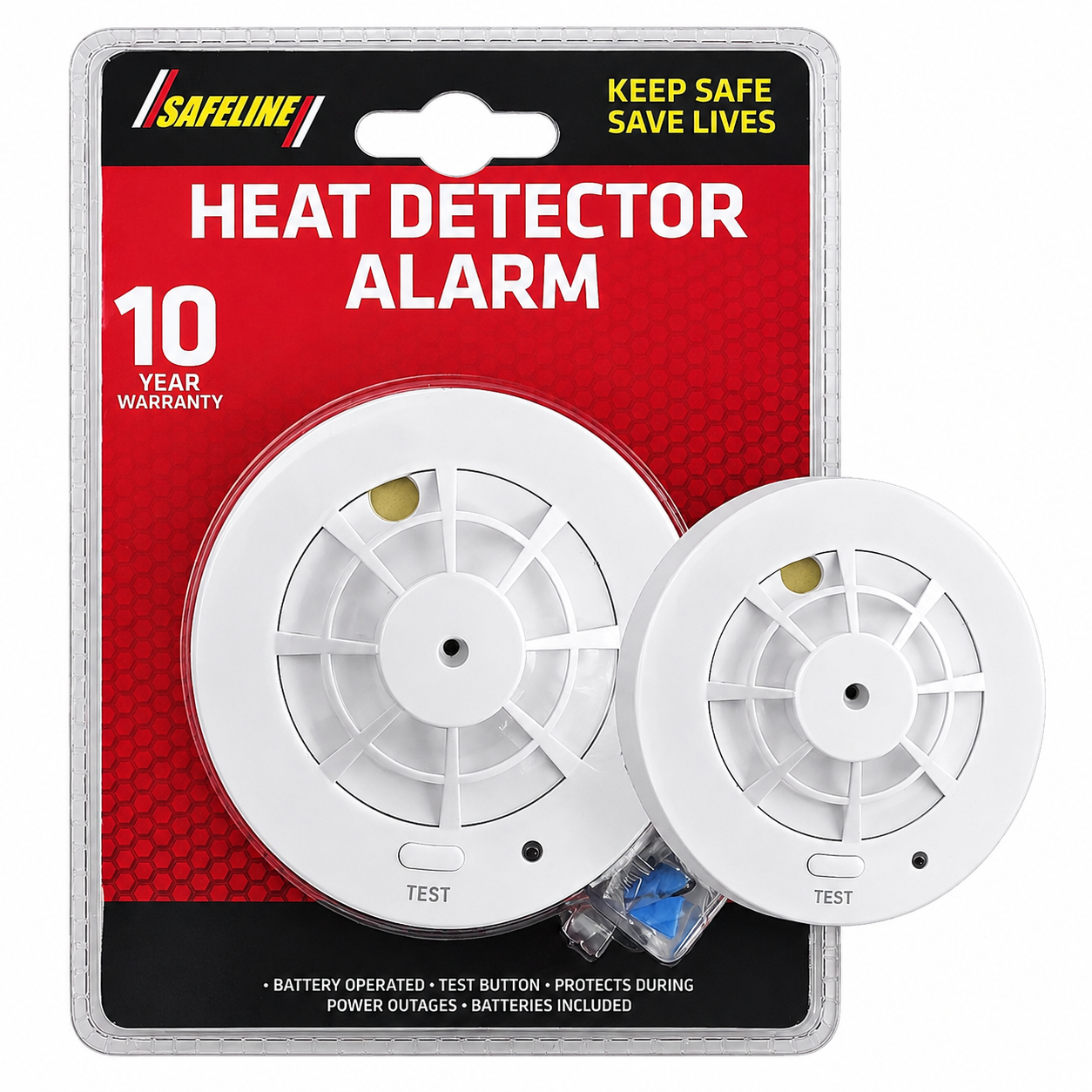

HEAT DETECTOR ALARM

The Safeline EL2229 Heat Detector Alarm is a high-performance, tem- perature-sensitive alarm designed to detect heat increases caused by open flames, even in environments where little or no smoke is present. Engineered with rapid temperature response, high accuracy, and excellent linearity, this detector ensures reliable performance in critical situations. It emits a gradually increasing alarm sound and features a red LED indicator to signal alarm status. This unit is battery operated, ensuring protection even during power outages, and includes a convenient test button for regular maintenance checks. It is ideal for use in kitchens, garages, and other areas where smoke alarms may not be suitable.

SKU: EL2229

Availability: In stock

Technical Specifications
Model Code: EL2229
Type: Heat Detector Alarm
Power Source: 2 x 1.5V AAA Batteries (Included)
Standard: EN5030-4: 2011 +A1:2014
EN IEC 61000-6-3: 2021
Detection Type: Temperature rise detection
Alarm Sound Level: ≤ 45 dB at 3 meters (initial)
Indicator: Red LED alarm indication
Test Function: Built-in test button
Operation: Battery operated (works during power outages)
Response: Rapid temperature response with high accuracy
Key Features
Battery operated
Test button for easy checking
Works during power outages
Detects heat from open flames
Audible alarm with increasing intensity
Visual LED alarm indicator
High accuracy and fast response
How to Use
Install the alarm on the ceiling in a suitable location (e.g. kitchen, hallway, garage).
Insert the included 2 x AAA batteries.
Press the test button to ensure proper operation.
The alarm will automatically activate when a rapid temperature increase is detected.
Test the unit weekly and after replacing the batteries.
Important Notes
Do not install in areas exposed to direct sunlight or sudden temperature spikes.
Install only in locations where ambient temperature is below 50°C.
Regular testing is recommended to ensure proper functionality
