🔹 Full Description

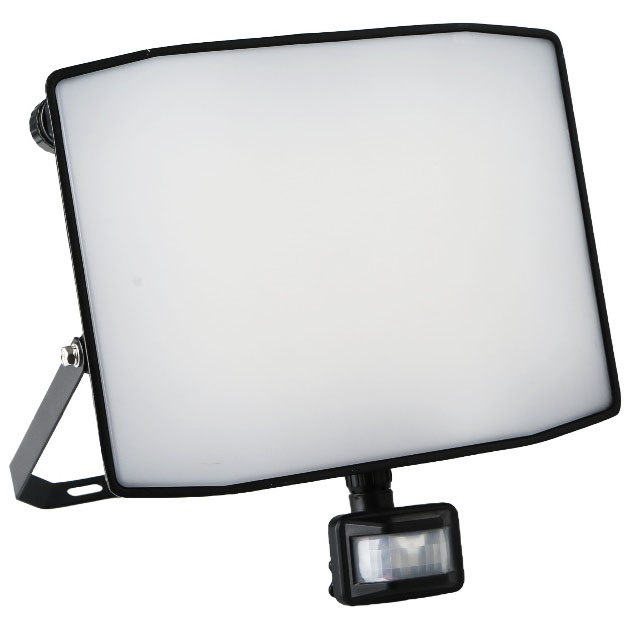

The EL27 Series LED Flood Lights with PIR Sensor offer reliable, high-brightness illumination combined with smart motion detection for enhanced security and energy savings.
Each model provides powerful light output — from 2,400 lumens (30W) to 8,000 lumens (100W) — making them ideal for both residential and commercial environments.

Built with durable, weather-resistant housing and a long-life LED chip, these floodlights deliver consistent performance even in harsh outdoor conditions. The PIR (Passive Infrared) sensor detects movement and automatically activates the light, ensuring optimal visibility while conserving energy when no motion is detected.

Perfect for use in car parks, gardens, building exteriors, workshops, and loading bays, the EL27 Series floodlights offer dependable lighting and security in one compact unit.

🔹 Overview

• Product Codes: EL2730W, EL2750W, EL27100W

• Power Options: 30W / 50W / 100W

• Lumen Output: 2,400 lm / 4,000 lm / 8,000 lm

• Light Type: LED Flood Light with PIR Sensor

• Voltage: 220–240V AC

• Material: Die-cast aluminium housing with tempered glass lens

• IP Rating: IP65 – suitable for outdoor use

• Colour Temperature: 6000K (Cool White)

🔹 Key Features

✅ Motion-Activated PIR Sensor – Automatically turns on when motion is detected for added security and energy savings.
✅ High Lumen Output – Bright, uniform light suitable for driveways, building perimeters, or worksites.
✅ Energy Efficient – LED technology reduces power consumption while maintaining brightness.
✅ Weather-Resistant Design (IP65) – Built to withstand rain, dust, and outdoor elements.
✅ Durable Construction – Die-cast aluminium housing ensures long-lasting performance.
✅ Adjustable Mounting Bracket – Easy to install and angle to your preferred lighting direction.
✅ Long Lifespan LED – Minimal maintenance with up to 30,000+ hours of use.
✅ Available in Multiple Wattages – Choose 30W, 50W, or 100W depending on coverage needs.

🔹 How to Use

1. Select the mounting area – Choose a solid surface such as a wall, ceiling, or pole near the area to be illuminated.

2. Install securely using the adjustable mounting bracket and appropriate screws/anchors.

3. Connect power to a 220–240V AC supply, ensuring correct polarity and grounding.

4. Adjust PIR sensor angle and sensitivity based on motion detection range and lighting duration.

5. Test the light – Walk through the detection zone to ensure proper activation and coverage.

6. Maintain regularly – Wipe the lens periodically and check wiring to ensure consistent performance.
